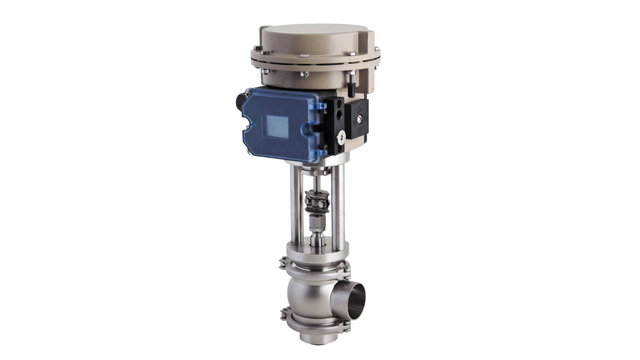

Unique RV-P

Advanced hygienic valve design

Unique RV-P valves are ideal for high-volume sanitary process applications that require precision control. With a self-draining valve body, these flow regulator valves are authorized to carry the 3-A symbol. Especially suitable for aseptic applications that require SIP (Sterilization in Place), the RV-P valves are fitted with PTFE diaphragms that prevent contamination from microorganisms and particles outside the product zone.

Extreme valve accuracy

The Unique RV-P features an electro-pneumatic actuator with integrated IP converter and integrated positioner, which contribute to greater operational accuracy and reliability. The positioner for RV-P valves are IP66 certified for water and dust protection.

Regulating valves with Unique SSV modularity

The pneumatic actuated regulation valves from Alfa Laval are both built on the same Unique SSV platform and thus modular with the Alfa Laval single seat valve range. The Unique RV-ST is ideal for standard regulating duties like metering, blending, weighing and filling.

If the regulating demands increases then the Unique RV-P is the optimal choice. With a high precision actuator and positioner it is ideal for regulation in applications where the highest accuracy is required. Based on modular components  different plug configurations can be selected to meet specific Kv requirements. The lower sealing element is clamped on and can be replaced to match flexible Kv values.

For more information, please refer to Documentation.

Aseptic version

The aseptic version of Alfa Laval's Unique RV-P is called Unique RV-P Aseptic. This is an electro-pneumatic modulating valve that features an IP converter as an integrated part of the actuator. Available with a range of plug designs with different Kv values, providing different capacities.

Supplied with a an aseptic diaphragm that provides hermetic sealing against intrusion from the atmosphere, ensuring full protection against the effects of micro-organisms during processing. This design allow aseptic control of pressure, flow, temperature in aseptic systems and to control the level of liquids in aseptic tanks.

Like all Alfa Laval  aseptic valves, the Unique RV-P Aseptic is constructed with few moving parts housed in the actuator for added wear protection. Its compact hygienic design contributes reduces the need for maintenance and makes disassembly, if required, quick and easy. Plus there are no loose springs to pose any safety risk when opening the valve. The diaphragm is fully modular with the well proven diaphragms from the Unique SSV Aseptic portfolio.

Low maintenance requirements

Like all Alfa Laval valves, the Unique RV-P is constructed with few moving parts housed in the actuator for added wear protection. Being modular with the Unique SSV portfolio it is possible to optimize maintenance routines and spare parts inventories in the plant. Its compact hygienic design contributes reduces the need for maintenance and makes disassembly, if required, quick and easy. Plus there are no loose springs to pose any safety risk when opening the valve.
